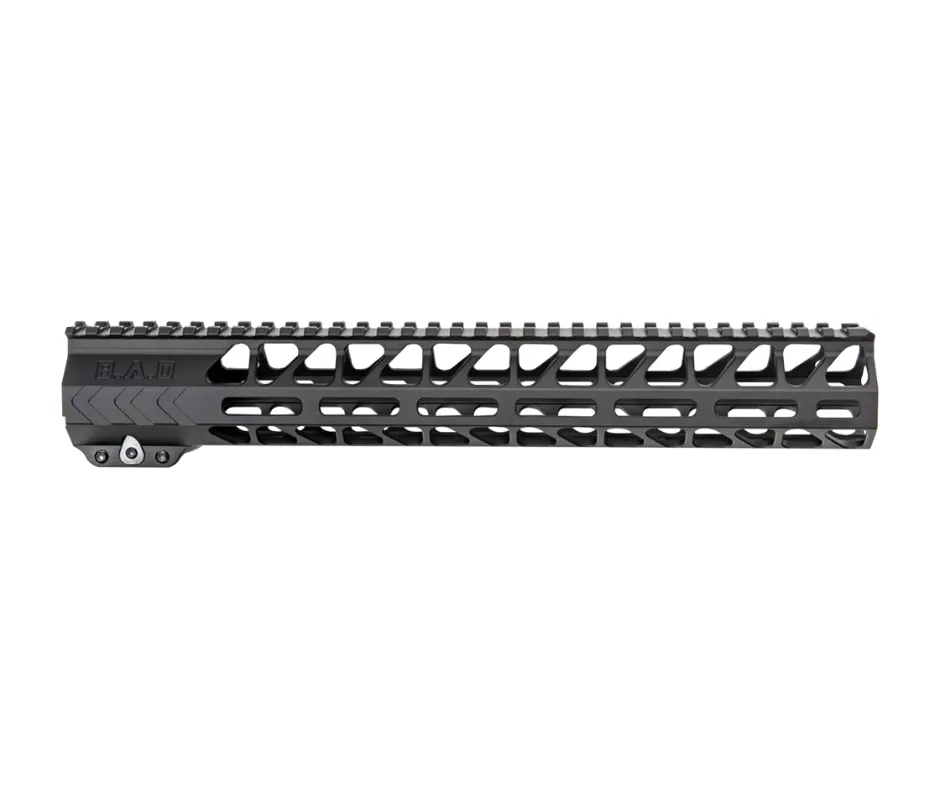

The WORKHORSE® M-LOK® compatible rail system was designed to be a lightweight and slimline option to be used on MIL-SPEC carbines available on the market today.
With M-LOK® mounting options at the 3.6, and 9 o'clock positions and skeletonized areas where M-LOK® is not used, this handguard not only offers function but shaves weight where it is not needed. We still maintain 1913 MIL-SPEC Picatinny rail at the 12 o'clock position that we "notch cut" to match our upper receiver and reduce weight again.
Offered in multiple lengths to accommodate different barrel lengths and different needs, the WORKHORSE® offers everything you need and nothing you don't.
Part Number: BAD-WH13-MLOK
UPC: 810033784620
Material: 6061 T6 Aluminum
Length: 13in
Weight: 7.5oz (No Barrel Nut) 9.6oz with Barrel Nut
Internal Diameter: 1.36in
Finish: Type 3 Black Hardcoat Anodize
Freefloat: Yes
Attachment Type: M-LOK®
Installation Torque Recommendations
Barrel Nut 30-45 ft-lbs
Screws 10-15 in-lbs
